Ultrasonic Liquid Processors - ULP500

We are Manufacturer, Supplier, Exporter of Ultrasonic Liquid Processors, Ultrasonic Probe Sonicators, Standard Titanium Probes Diameter and our setup is situated in Pune, Maharashtra, India.

Ultrasonic Liquid Processors
Ultrasonic Probe Sonicators

ULP 500 comes with, ultrasonic generator 20 khz 500w, enclosure / stand, standard titanium probes diameter 12.5mm / 6mm

SPECIFICATIONS

Size
L*W*H =420MM*300MM*500WW
Inbuilt jack
100mm up - side is possible
Stand simple
base size 310mm*220mm Height:520mm
Hight
With enclosure: 16kg, stand 11kg
Table/Plate operating size
Enclosure: 400*300mm Stand:220*310mm
Power
Maximum 550w
Control
Selec PLC 1010
Color
Simens gray 3570
Display
01 Line LED display
Start signal
In PLC start / stop
Control Time
Processing time settable 1 second to 9.99 hours
Interval time total time
Amplitude
4 step amplitude set
Generator
UG 2005, 20 khz 500w
Trouble indicator
Machine trip / under voltage / over voltage / over power
Input suppy
230v AC 1Phase
*Different size probes available

    Other models available
  • ULP :750W / 1000W
  • Also available systems to run on high temperature up to 1000 Celsius
  • Processing systems for nanoparticles

  • Other machines available
  • Ultrasonic hand held welding guns
  • Ultrasonic sewing machines
  • Ultrasonic spot welders
  • Ultrasonic liquid processors


standard titanium probes diameter

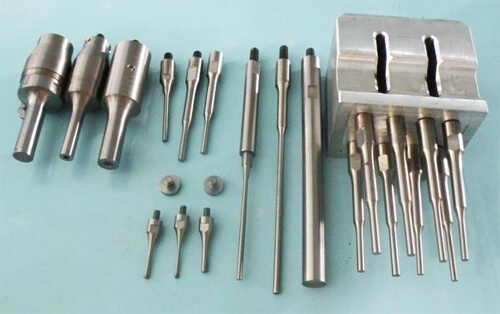

Standard Titanium Probes Diameter

In ultrasonic liquid processor, processing of liquid is being done by high-frequency ultrasonic vibrations.

Ultrasonic liquid processors are used for processing liquids and lab operations.

Johnson Plastosonic manufactures high wattage Liquid Processors.

Ultrasonic liquid processors have various laboratory applications like;

  • Dusubtegratuib : conver fibros, cellulosic matrial into fine particle
  • Degas solutions/dearation : to remoce air bubbles from samples
  • Create emulsions / supensions of 02 or more immiscible liquids
  • Continuous liquid processing is possible
  • Dispersion / deagglomeration of solid into liquids
  • Homogenizing: to reduce small particles in the liquid
  • Ultrasonic transesterofocation of oil into bio-disel
  • Particle size reduction
  • Lyse cells
  • Increase solubility
  • Stirring of samples/mixing
  • Sonochemical effect.

These all operations are being achieved by giving high-frequency vibrations in liquid. The vibrations are given through ultrasonic horns or sonotrode, tip, which is made up of titanium. Johnson plastosonic can make different types of tip depending on size & vibrations needed Vibrations can be given continuously or pulsed type. Variable amplitude can be set by Johnson's advanced ultrasonic generator system.

  • Temperature sensor is given for temperature sensing.
  • The ultrasonic probe is put in a housing enclosure for sound absorbing.

Model
Frequency
Wattage
ULP20025
20KHZ
250W
ULP2005
20KHZ
500W
ULP2015
20KHZ
1500W
