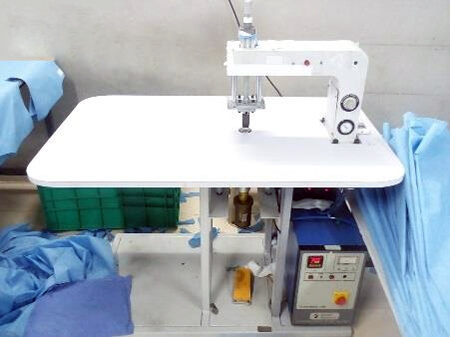

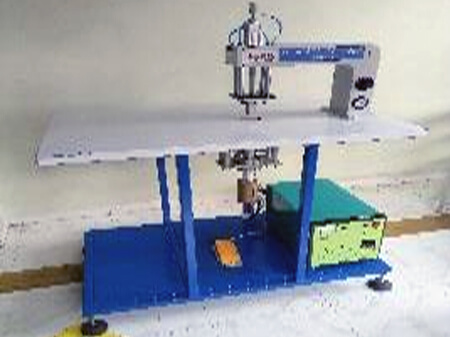

Ultrasonic Gown Tie Spot Welder / Welding Machines

We are Manufacturer, Supplier, Exporter of Ultrasonic Gown Tie Spot Welder / Welding Machines and our setup is situated in Pune, Maharashtra, India.

Ultrasonic sewing machine USWM gown tie spot welder comes with ultrasonic generator UG1000. And steel horn also pattern fixture. Suitable to seal tie to gown 3 layers / 4 layers / 5 layers can be sealed

SPECIFICATIONS

Size
L*W*H =27"*44"*50"
Weight
92kg
Operating Height
750mm
Distance
Throat depth:11"
Color
Blue 5010 AND Siemens gray:7035
Pneumatic
Make SMC Japan
Cylinder: Bore 2" Stroke length:2"
Drive System
Straight guide rods
Positive Stop
Positive stop with 1mm pitch
Coarse up down
Pneumatic
Positive stop
Cylinder in built positive stop
Generator
UG 2010 (20Khz 1000w)
Input suppy
230v AC 1Phase 5A. inbuilt voltage stabilizer from 180 to 250 V AC
Start
Foot operated switch operation
Time control
Timer selec :543)
Seal pattern
Diamond 15*20mm (other sizes available on demand)

    OTHER MODEL AVAILABLE
  • USM:Ultrasonic sewing machines for nonwoven, woven fabrics
  • Ultrasonic face mask Tie spot welder
  • Ultrasonic surgical gown tie spot welder

  • Other machines available
  • Ultrasonic hand held welding guns
  • Ultrasonic sewing machines
  • Ultrasonic spot welders
  • Ultrasonic liquid processors
